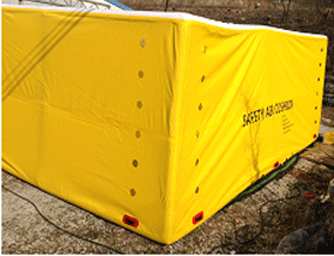

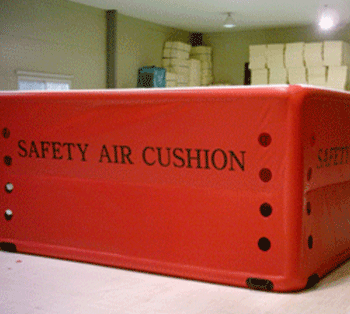

SAFETY AIR CUSHION-CYLINDER TYPE
Our Safety Air Cushion was safely rescued from a high building structure to be high or when a emergency Rescue situation and can also be used in firefighting training as long as the manufacturer's instruction are followed. Our Safety Air Cushion produced Waterproof, fire-retardant, anti-acid, highly tear and abrasion resistant material, guarantees an excellent level of reliability and strength. Our cushions that can be tailored to the size buyers demand from small size to large size and specially designed to be easily recognized structure in the midnight and dark area.
Features
- Cushion is installed by Compressed Air Cylinder.(Electric or Motor pump is not required.)
- Easy to install and to moving with 4 edge Handle while operation.
- Reinflation within 30 second (Depend on size) after landing.
- The big holes for 1~2 chambers of Air cushion are designed for immediate air injection and allow restoring cushion to the original state earlier after landing.
- Air Cushions consists of one or two chambers that allow you to land safely.

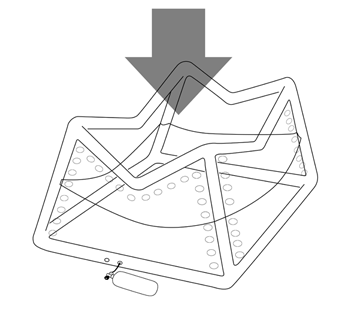

- Air Cushion fully absorb the kinetic energy from landing body and do not give back bounce.
- Structure:
- Cushion’s chambers are designed for immediate air injection and allow restoring to the original state easier after landing
- There are plastic handles bottomed on four sides of air cushion for making easy and convenient while moving in using.
- Material
- Made from 100% special Polyester, fire resistance, waterproof, highly tearing resistance, have double seam structure, the cover can be mend able by special material.

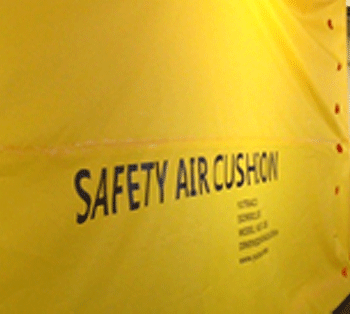

- Luminous Lines are easy to fall down when the environment is dark.
Material
- Tube: 1100 denier polyester coated with plastomer having excellent resistance to tearing, tension and breaking.
- Cover: 1100 denier polyester coated with fire retardant and water-proof.
Tested
ISO 9001:2008
EN ISO6941
DIN EN 20811
DIN EN ISO 13938-1:999
BS5438
DIN 14151-3.
DIN 53354:1981
DIN 4102 B1
DIN 53352
DIN 53353
DIN 53363
DIN 53886
DIN 53361
NFPA 701,M2,CL2,LSG
Specifications
| Model No | GDC35 | GDC50 | GDC49 | GDC70 | GDC100 | GDC150 | GDC200 |
|---|---|---|---|---|---|---|---|
| No.of Chamber | One Chamber | Two Chamber | |||||
| Size (m) | 3.5x3.5x1.7 | 4.0x4.0x2.0 | 4.9x4.9x2.5 | 4.5x6.0x2.5 | 5.0x7.0x2.5 | 6.0x8.0x3.0 | 7.0x10.0x3.0 |
| Allowable Height | Under 15m | 15m | Under 21M | Under 25M | 30m | 45m | 60m |
| Inflation time | 30sec | 40sec | 40sec | 45sec | 60sec | 80sec | 100sec |
| Reinflation time | 10sec | 17sec | 19sec | 21sec | 25sec | 35sec | 45sec |
| Cushion Weight | 62kg | 85kg | 100kg | 105kg | 110kg | 170kg | 220kg |
| Packing(cm) | 130x70x50 | 130x70x50 | 130x80x55 | 130x80x50 | 130x80x50 | 150x80x50 | 140x90x60 |
| Cylinder's quantity | Composite.6.8L x 1~2pcs | Composite.6.8L x 2pcs | |||||
How to Use
- 1. Unfold the cushion in the place where necessary
- 2. Filled-air-cylinder should be connected to air-inflation valve, you can use it one cylinder and/or two cylinder, of course, when Customer required two cylinder, two air-inflation valve could be connected by air-inflation hose.
- 3. After air-filled fully maybe you can listen in a loud sound “PANG” which it means “The Air had fully Filled”, then the air-adjuster valve should be operated automatically, please open the attached photos.
- 4. When the cushion is inflated, try to make your back reach the cushion when escaping.
CYLINDER(option)
- COMPOSITE CYLINDER 6.8LTR
- Manometer Valve for Cylinder
- HOSE
- REPAIR KIT
Customization is available for all products
