AIR CUSHION

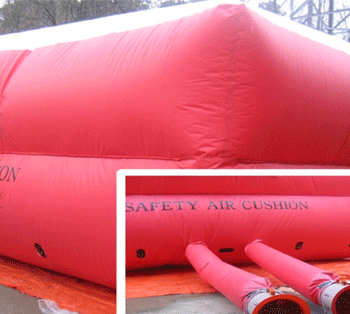

Air Cushion (Fan Type)
Fan Type Fan Type Fan Type

The Safety Air Cushion complete set offers a realistic and efficient solution for emergent rescues such as: big fires, terrorism attacks etc. It was studied and produced in cooperation with market leaders in the fields of ventilation and plastics using certified raw material and ISO 9001:2015 quality control system. The Safety Air Cushion set is the result of the development and improvement of a 1974 American design and is suitable for people jumping from high position in emergency rescue situations. It can be used in fire fighting training as long as the manufacturer instructions are followed.

Produced in self-extinguishing, waterproof, anti-acid, high tear and abrasion resistant material, an excellent level of reliability and strength is guaranteed. Since it operates at low pressure, the cushion can withstand small tears or punctures during the evacuation operation without its properties as a rescue device being compromised.

Features

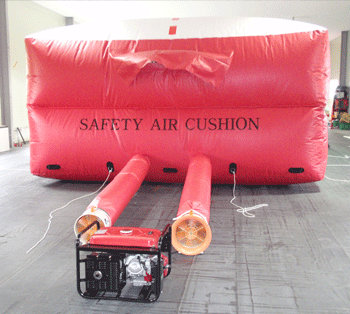

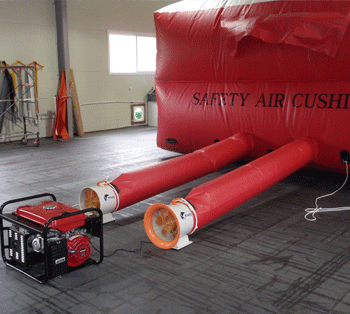

  1. Cushion is installed and operated by continuous air blower (fan).
  2. Easy to install and to carry while operation.
  3. The big holes for 2 chambers cushion are designed for immediate air injection and allow restoring cushion to the original state earlier after landing.
  4. When landing body touch down the cushion, air stopper close the hole of lower chamber automatically.

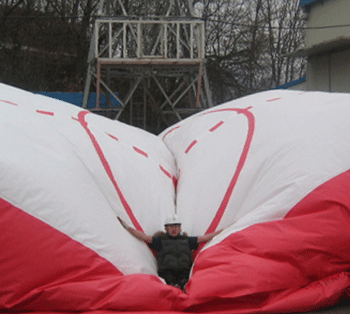

  5. Cushion fully absorb the kinetic energy from landing body and do not give back bounc.
  6. Color: Red
  7. Structure
    • 02 cushion chambers are designed for immediate air injection and allow restoring to the original state easier after landing
    • There are plastic handles bottomed on four sides of air cushion for making easy and convenient while moving in using
    • All sides are attached by adhesive with the width of glue is 5cm
  8. Material
    • Made from 100% special Polyester, fire resistance, waterproof, highly tearing resistance, have double seam structure, the cover can be mend able by special material

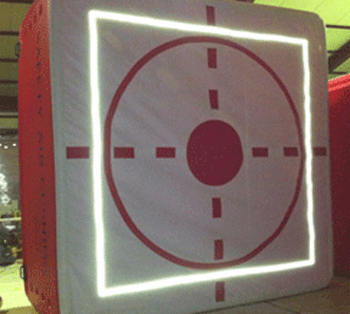

    • Edge Parts, 4side in Luminous Colored Lines(Option)
    • 5cm width of luminous color lines(Option)
Tested

ISO 9001:2008, EN ISO6941, DIN EN 20811, DIN EN ISO 13938-1:999, BS5438, DIN 14151-3, DIN 53354:1981, DIN 4102 B1, DIN 53352, DIN 53353, DIN 53363, DIN 53886, DIN 53361, NFPA 701,M2,CL2,LSG

Specifications
Model No DF35 DF50 DF55 DF70 DF100 DF125 DF150 DF200
Size (m) 3.5x3.5x1.5 3.7x3.7x1.7 4.2x4.2x2.5 4.5x6.0x2.5 6.0x8.0x3.0 6.0x9.0x3.0 7.0x10x3.5 8.0x14x4.0
Allowable Height Under 15m Under 15m 20m 21m 30m 30m 45m 60m
Injection time 30sec 35sec 37sec 40sec 80sec 80sec 120sec 150sec
Reinflation time 6sec 7sec 8sec 8sec 12sec 12sec 17sec 21sec
Weight 40kg 45kg 80kg 97kg 135kg 135kg 210kg 280kg
Cushion Packing 130x70x50 130x75x50 130x75x50 130x80x50 130x80x55 130x80x55 130x80x55 150x120x60
Fan Type DTV-300ca x 1 DTV-300ca x 1 DTV-300ca x 2 DTV-300ca x 2 DTV-300ca/500ca x 2 DTV-300ca/500ca x 2 DTV-500ca x 2 DTV-500ca x 2
FAN

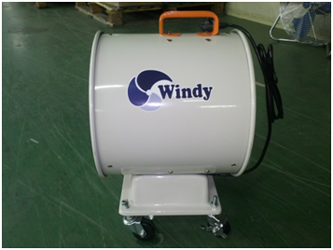

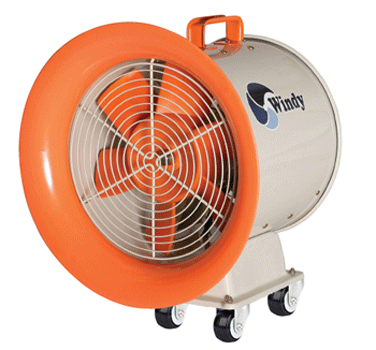

[DTV-300ca/400ca/500ca]
Model No V Fan size(m/m) Hz A W r.p.m KW P Power Rating Air Pressure kg
m3/min ft3/min mmAg Pa
DTV-300/DTV-300ca 1ø 220 300 50 1.75 400 2,850 0.4 2 53 1,870 45 440 14
60 2.45 540 3,300 61 2,155 60 590
DTV-350/DTV-350ca 1ø 220 320 50 3.00 625 2,900 0.75 2 105 3,710 65 640 16.5
60 4.35 960 3,400 125 4,415 90 880
DTV-500/DTV-500ca 1ø 220 470 50 3.40 710 1,445 0.75 4 140 4,945 36 355 32
60 4.90 1,060 1,680 160 5,650 48 470

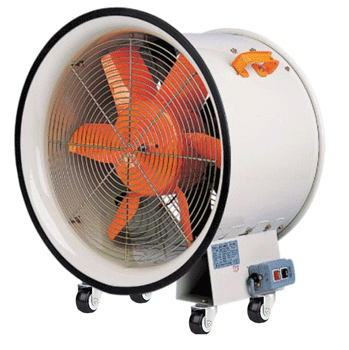

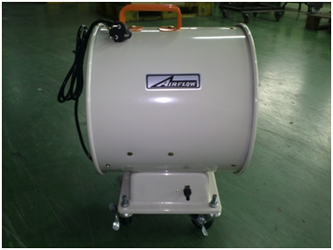

[DTV-500CA/600CA]
Model No V Fan size(m/m) Hz A W r.p.m KW P Power Rating Air Pressure kg
m3/min ft3/min mmAg Pa
DTV-500CA 1ø 220 500 50 2.55 530 1,475 0.75 4 145 5,120 43 420 30
60 3.80 780 1,755 170 6,005 60 590
DTV-600CA 1ø 220 600 50 4.80 875 1,450 1.5 4 353 12,465 43 420 60
60 6.40 1,380 1,725 420 14,830 60 590

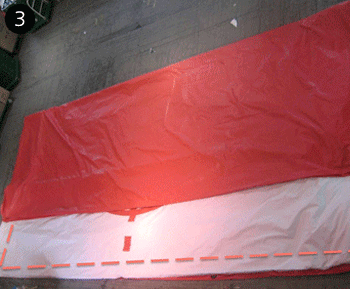

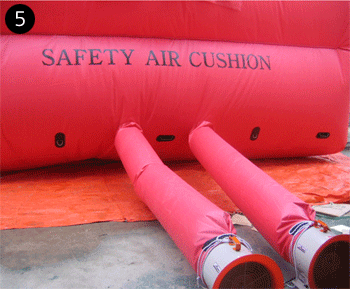

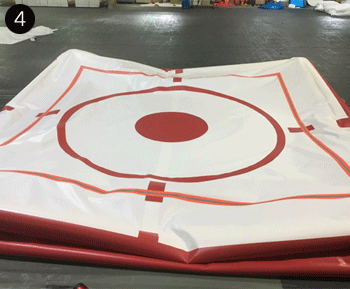

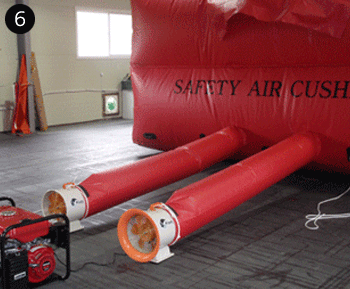

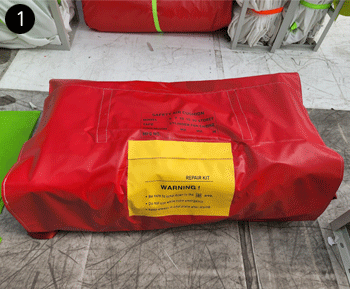

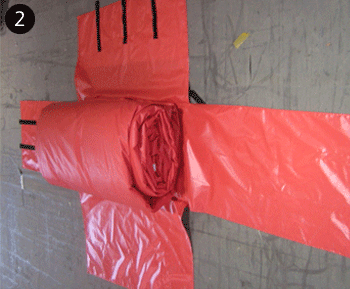

How to operate
Fan Type Fan Type Fan Type Fan Type Fan Type Fan Type
Caution
Air cushion is applied to
  1. It must be escaped once, but the one by one
  2. Before person came out from the air cushion, next person must be down on the air cushion
  3. When the air cushion open on the ground, it must be fix on the center
