AIR CUSHION

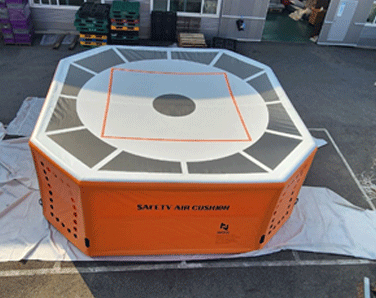

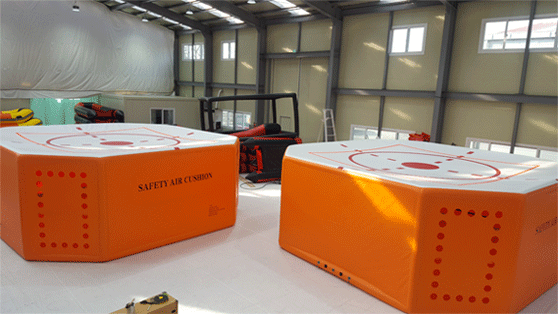

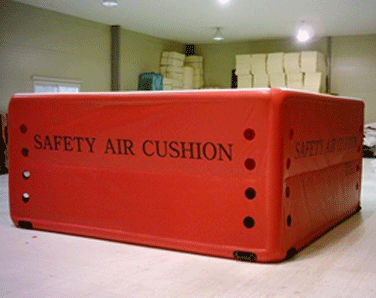

Air Cushion (Octagonal Shape)
Features
- Cushion is installed by Compressed Air Cylinder. Electric or Motor pump is not required.
- Easy to install and to carry while operation.
- Reelection within 3 seconds (Depend on size: 3-12 seconds) after landing.
- The big holes for 2 chambers or 3 chamber Air cushion are designed for immediate air injection and allow restoring cushion to the original state earlier after landing.
- When landing body touch down the cushion, air stopper close the hole of lower chamber automatically. This makes a temporary sealed air chamber.

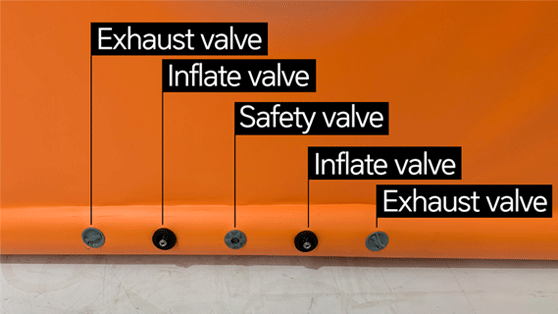

- A plenty of air is expelled by the two breathers on either side.
- Made of special polyester fabric
- High abrasion proof.
- All sides are attached by adhesive with the width of glue is 5cm
- Cushion fully absorb the kinetic energy from landing body and do not give back bounce
Material
- Tube: 1000 denier polyester coated with plastomer having excellent resistance to tearing, tension and breaking.
- Cover: 1000 denier polyester coated with fire retardant and water-proof
Tested
ISO 9001:2008, EN ISO6941, DIN EN 20811, DIN EN ISO 13938-1:999, BS5438, DIN 14151-3, DIN 53354:1981, DIN 4102 B1, DIN 53352, DIN 53353, DIN 53363, DIN 53886, DIN 53361, NFPA 701,M2,CL2,LSG
Specifications
| Model No | DC35-AC | DC50-AC | DC70-AC | DC150-AC |
|---|---|---|---|---|
| No.of Chamber | One Chamber | One Chamber / Two Chamber | ||
| Size (m) | 3.5x3.5x1.7 | 3.7x3.7x1.7 | 4.9x4.9x2.5 | 9.6x9.6x3.5 |
| Allowable Height | Under 15m | Under 16m | 25m | 45m |
| No.of Cylinder | Steel 10.2L x 1, Composite.6.8L x 1 | Steel 10.2L x 2, Composite.6.8L x 2 | ||
| Inflation time | 18sec | 18sec | 20sec | 40sec |
| Reinflation time | 10sec | 10sec | 20sec | 30sec |
| Cushion Weight | 62kg | 65kg | 105kg | 250kg |
| Packing(cm) | 130x70x50 | 130x70x50 | 130x80x55 | 130x80x55 |
