ESCAPE CHUTE
Sloping Escape Chute (Stationary Type)

Sloping Escape Chute is a device which aids in the mass and rapid evacuation of people from high structures, where one chute is capable of evacuating some 375 evacuees from a high rise building in 15 to 20 minutes. The sloping escape chute can be used by people with disabilities and after a little training blind people are more than capable of using the chute, It is also possible for a person to enter the chute, and then have an injured second person placed upon their shoulders, to assist the second person to evacuate.

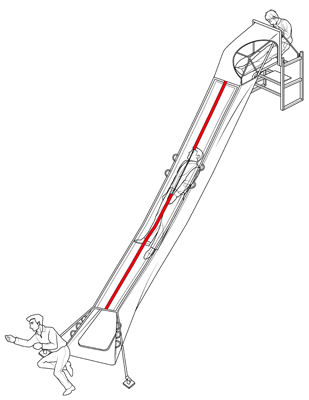

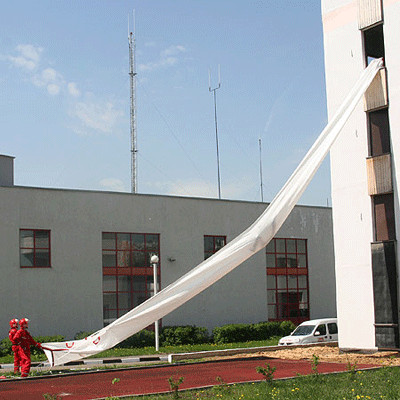

Sloping Escape Chute can be installed onto most structures, and only requires a clear drop to ground level. When deployed, it must runs at an angle 45 degrees with the side of structures. As you travel through the escape chute you can look up and down, no smoke can enter the chute. To exit your feet will touch the ground, extract your body from the chute and walk away.

Sloping Escape Chute Manual

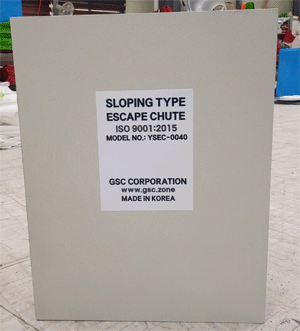

Open the Entrance Cabinet and draw-away the escape chute from opened the door.
Place the Entrance Frame to lower the middle tread plates on the fixture to secure the footrest.
Escape through the Base Plate into the Entrance Frame. On the floor using anchor bolts firmly fixed to the Support Frame. Or the rescuers must assist the Holding Handles.
Upon reaching the ground, move away from the exit point of chute and move to safe area.
Installation
Floor 2F 3F 4F 5F 6F 7F 8F 9F 10F 11F 12F 13F 14F
Bilding Height(mtr) 6M 9M 12M 15M 18M 21M 24M 27M 30M 33M 36M 39M 42M
Chute Length(mtr) 7M 11M 16M 21M 26M 31M 36M 41M 46M 51M 56M 61M 66M
Product Description
Function
  • For escape and rescue in over 20metres high
  • Disable person and the blind can use it after training
  • Possible for rescue 02 person together (one rescuer, one injured or disable person, children, old person. pregnant women)
Structure
  • Flexible structure can be installed flexibly and quickly onto the balcony, window… of high building

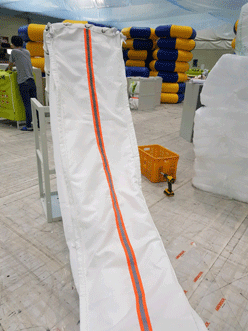

  • Padding on the bottom of the chute to maximum avoid injuring or shock for user
Escape chute precautions
Maintenance
  1. Please use the product is used for the purpose of evacuation when the fire is put to emergency situations everywhere, if you use wrong way cause the human or material damages, serious injury or death are issued due to use depending on usage.
  2. When you open the frame without careful, it may be damage with spare part and frame such as exit windows or parts attached to the frame will occur.
  3. The folded device on Frame is rotated to straighten, be carefully your fingers or body parts may occur tight or bad situations.
  4. If When Escape chute use with twisted on the outside or contact obstacle, it occur to shock and/or damage.
  5. If Escape chute are using short or exceed the length of the rescue of 1M or more, it could not be evacuated. Be use to install the appropriate vertical descent way rescue the building and installation.
  6. When you go down the exposed parts of the body should not touch on slop fabric material. When you down, it occur friction parts exposed blossomed.
Storage Cautions
Maintenance

It have to dry after when you used, if have moist it may be change the color or damage on the Escape chute

When inspection occurs if the following precautions: Please contact immediately the necessary action will not occur until the situation in which a person can cause serious injury

  • When Escape chute stored during long-term storage, it occurred when corrosion or rust on the frame or supporting frame entrance folding device
  • when Escape chute fabric land discoloration or mold, etc. bloomed
  • When Escape chute fabric stuck or torn land

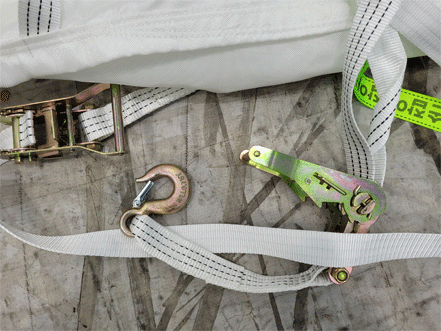

  • When various ropes have discoloration and/or mildew and/or tears
