Vertical Spiral Chute (Mobile Type)
Vertical Spiral Chute (Mobile Type)

This Vertical-Spiral Escape Chute is fabric chute attached to a metal frame and held together with support belts. It is designed to be installed to the building for the rescue and to evacuation people with speed and safety

Vertical-Spiral Escape Chute is a device which emergency in the crowd and rapid evacuation of people from high structures, where one chute is capable of evacuating some evacuees from a high rise building in 15 to 20 minutes. It is also possible for a person to enter the chute, and then have an evacuee second person placed upon their shoulders, to assist the second person to evacuate. The Vertical-Spiral Escape Chute construction of the chute allows several people in a continuous order to descent without blockage. The law of friction and gravity keeps bodies with different weights apart in equal distance (2minutes/person for a 30m descent)

The speed of the descent is about 2.10meter/second compared to 5m/second for the average elevator.
The personal escape chute system offers an external independent escape option. When an earthquake shifted walls and blocked door exits, our external escape chute has been proven to bring occupants safely to the ground.
The weight of the chute system and all people in it is supported by Support belts which guarantee and equal distribution of the pulling force.
The sliding Cloth is in spiral form descending in anti-clockwise direction. The body is sliding steadily in a left handed turn through the safety chute
The Outer Cloth is Polyester and flame resistant as well as water repellent.
The Holding handle are for stabilizing the chute from the ground and the chute will be attached to a ground anchor or a certain person helps for coming out in order to provide add stability.
The Capsule has a thick foam cushion at the bottom for additional comfort upon exiting

Vertical-Spiral Escape Chute can be installed into most structures, and only requires a clear drop to ground level. When deployed, as you travel through the escape chute you can look up and down, no smoke can enter the chute. To exit your feet will touch the ground, extract your body from the chute and walk away
Vertical Spiral Escape Chute Manual
Vertical Spiral Chute (Mobile Type)

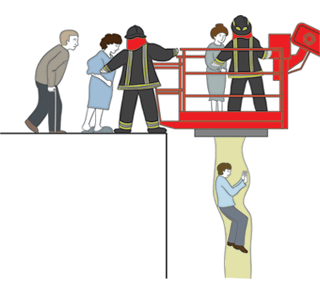

Open the Entrance Cabinet and throw away the Escape Chute from opened window.
Vertical Spiral Chute (Mobile Type)
Place the Entrance Frame to lower the middle tread plates on the fixture to secure the footrest. Escape through the Base Plate into the Entrance Frame.
Vertical Spiral Chute (Mobile Type)
A complete stop can be accomplished by pressing your knees, elbows and hands hard against the wall of the chute.
Vertical Spiral Chute (Mobile Type)
Assistant twists the chute to ensure that person lands on the ground safely and moves away from the exit point of the chute quickly.
Installation
Floor 2F 3F 4F 5F 6F 7F 8F 9F 10F 11F 12F 13F 14F 15F 16F 17F 18F 19F 20F
Size(mtr) 6M 9M 12M 15M 18M 21M 24M 27M 30M 33M 36M 39M 42M 45M 48M 51M 54M 57M 60M
Sliding time 2sec 2sec 3sec 4sec 5sec 6sec 6sec 7sec 7sec 8sec 8sec 9sec 9sec 10sec 10sec 11sec 11sec 12sec 12sec
Vertical Spiral Chute Of System
Mobile Type

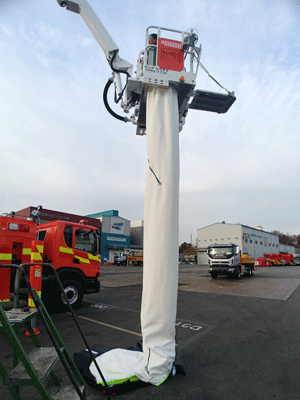

  • Max.Working height: 70M
  • Max.Length of the chute: 70m(24storeys)
  • Classification: MSA Certificated
  • Material used: Flame retardant
Feature
  • A Lots of Persons can be escaped in a short times
  • The Escape can be used alone
  • The disabled, Senior citizens & pregnant women can be escaped easily
Where it needed
  • Government Buildings, Fire Truck Installation, Hotel, School, High-Rise Building, etc
Escape chute precautions
Maintenance
  1. Please use the product is used for the purpose of evacuation when the fire is put to emergency situations everywhere, if you use wrong way cause the human or material damages, serious injury or death are issued due to use depending on usage.
  2. When you open the frame without careful, it may be damage with spare part and frame such as exit windows or parts attached to the frame will occur.
  3. The folded device on Frame is rotated to straighten, be carefully your fingers or body parts may occur tight or bad situations.
  4. If When Escape chute use with twisted on the outside or contact obstacle, it occur to shock and/or damage.
  5. If Escape chute are using short or exceed the length of the rescue of 1M or more, it could not be evacuated. Be use to install the appropriate vertical descent way rescue the building and installation.
  6. When you go down the exposed parts of the body should not touch on slop fabric material. When you down, it occur friction parts exposed blossomed.
Storage Cautions
Maintenance

It have to dry after when you used, if have moist it may be change the color or damage on the Escape chute

When inspection occurs if the following precautions: Please contact immediately the necessary action will not occur until the situation in which a person can cause serious injury

  • When Escape chute stored during long-term storage, it occurred when corrosion or rust on the frame or supporting frame entrance folding device
  • when Escape chute fabric land discoloration or mold, etc. bloomed
  • When Escape chute fabric stuck or torn land
  • When various ropes have discoloration and/or mildew and/or tears
Intended Use

This product is designed to provide safe and quick evacuation of people. The system is geared to facilitate the escape of evacuees with or without mobility deficiencies. It is used as an alternative or complementary escape route in case of emergency such as terrorist attack, earthquake, fire, etc. Its compact storage box can be designed to integrate fully to installed by a window, roof top or balcony.
