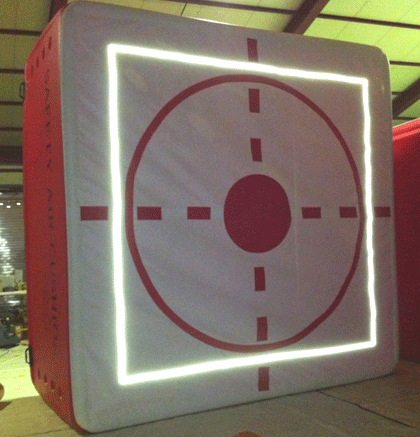

Air Cushion (Air Blower Type)
Air Blower Type

Our Safety Air Cushion was safely rescued from a high building structure to be high or when a emergency Rescue situation and can also be used in fire fighting training as long as the manufacturer's instruction are followed. Our Safety Air Cushion produced Waterproof, fire-retardant, anti-acid, highly tear and abrasion resistant material, guarantees an excellent level of reliability and strength. Our cushions that can be tailored to the size buyers demand from small size to large size and specially designed to be easily recognized structure in the midnight and dark area

In 2017year, We are developing New Safety Air cushion-Cylinder and Air Blower, you can use both of them on same cylinder. Please see the below picture.

Features
  1. Cushion is installed by Compressed Air Cylinder. Electric or Motor pump is not required.
  2. Easy to install and to carry while operation.
  3. Reelection within 3 seconds (Depend on size: 3-12 seconds) after landing.
  4. The big holes for 2 chambers or 3 chamber Air cushion are designed for immediate air injection and allow restoring cushion to the original state earlier after landing.
  5. When landing body touch down the cushion, air stopper close the hole of lower chamber automatically. This makes a temporary sealed air chamber.
  6. A plenty of air is expelled by the two breathers on either side.
  7. Made of special polyester fabric
  8. High abrasion proof.
  9. All sides are attached by adhesive with the width of glue is 5cm
  10. Cushion fully absorb the kinetic energy from landing body and do not give back bounce
Material
  1. Tube: 1000 denier polyester coated with plastomer having excellent resistance to tearing, tension and breaking.
  2. Cover: 1000 denier polyester coated with fire retardant and water-proof
Tested

ISO 9001:2008, EN ISO6941, DIN EN 20811, DIN EN ISO 13938-1:999, BS5438, DIN 14151-3, DIN 53354:1981, DIN 4102 B1, DIN 53352, DIN 53353, DIN 53363, DIN 53886, DIN 53361, NFPA 701,M2,CL2,LSG

Blower Specification
Feature Voltage Power Air volume Air pressure N.W./G.W
Aspirated,and inflatable high-power 110-220V 1800W 13m³/m 20-30kpa 4.8kg/6kg
Specifications
Model No DC35 DC50 DC44 DC55 DC70 DC100 DC150 DC200
No.of Chamber One Chamber One Chamber /Two Chamber Two Chamber / Three Chamber
Size (m) 3.5x3.5x1.7 3.7x3.7x1.7 4.0x4.0x2.0 4.2x4.2x2.0 4.5x6.0x2.5 6.0x8.0x3.0 7.0x10.0x3.5 7.0x11.0x3.5
Allowable Height Under 15m Under 16m 20m 20m 25m 30m 45m 60m
No.of Cylinder Steel 10.2L x 1, Composite.6.8L x 1 Steel 10.2L x 2, Composite.6.8L x 2 Steel 10.2L x 3, Composite.6.8L x 3
Inflation time 18sec 20sec 30sec 30sec 35sec 50sec 100sec 150sec
Reinflation time 10sec 10sec 10sec 15sec 20sec 30sec 40sec 50sec
Cushion Weight 62kg 65kg 100kg 100kg 105kg 186kg 250kg 450kg
Packing(cm) 130x70x50 130x70x50 130x70x50 130x75x50 130x80x55 130x80x55 150x80x60 150x80x60
How to Use
Air Blower Type
Unfold the cushion in the place where necessary
Air Blower Type
Filled-air-cylinder should be connected to air-inflation valve, you can use it one cylinder and/or two cylinder, of course, when Customer required two cylinder, two air-inflation valve could be connected by air-inflation hose
Air Blower Type
After air-filled fully maybe you can listen in a loud sound “PANG” which it means “The Air had fully Filled”, then the air-adjuster valve should be operated automatically, please open the attached photos
Air Blower Type
When the cushion is inflated, try to make your back reach the cushion when escaping
Caution
Air cushion is applied to
  1. It must be escaped once, but the one by one
  2. Before person came out from the air cushion, next person must be down on the air cushion
  3. When the air cushion open on the ground, it must be fix on the center
